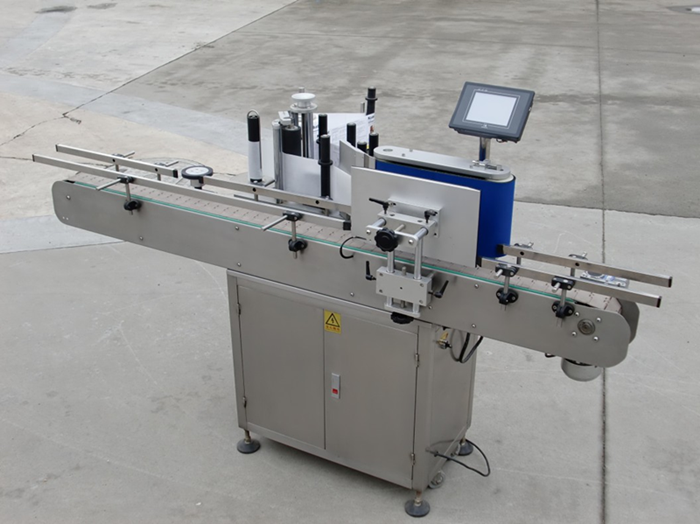

This unit labeling machine is suitable for PET, glass and other materials 100-500ml round bottle, the highest production speed of up to 10000 bottles / hour. According to the process and technical requirements of high-speed automatic labeling machine, it is specially designed and manufactured. The control system adopts advanced programmable controller to control; high performance stepper motor with advanced driven method to drive ; various state and parameter display clear.
This adhesive
labeling machine manufacturing structure is simple and reasonable. The utility
model can automatically paste the self-adhesive label paper on the bottle body.
In case of bottle missing, the control system of the machine can ensure that
the label paper is not sent out, effectively prevented waste the labels, and
the production capacity can be continuously adjusted according to the
specifications and characteristics of the bottle and the labeling paper. Mainly
used for the surface labeling of all kinds of round bottle, the bottle on the
surface of the self-adhesive label paper paste labeling process smooth and
beautiful appearance, stable and reliable, the marking position fully meet the
ideal requirements for modern machinery for labeling.
advantage
1, fast running
speed and stability, high accuracy.
2, the
carrier labeling process will not be damaged, the labeling effect is good,
smooth, wrinkle free.
The
beginning of the process is that the bottle is fed to the labeling machine at a
constant speed on the conveyor belt. A mechanical fixing device separates a
fixed distance between the bottles and pushes the bottle along the direction of
the conveyor belt; the mechanical system of the labeling machine includes a
drive wheel, a labeling wheel, and a reel. The driving wheel intermittently
drags the label belt movement, the label belt is pulled out of the reel, and
the label wheel is pressed on the box by the labeling wheel. An open loop
displacement control is used on the scroll to maintain the tension of the label
band, since the labels are closely connected with each other on the label band,
so the label belt must continuously stop and move on.
|
Model |
Vertical Round Bottle Labeling Machine |
|
Production (B/M) |
50-160 （depend on label length and bottle size） |
|
Apply Bottle Size（mm） |
100-500ml（customized available） |
|
Label Size（mm） |
Length less 250；width less 75（customized available） |
|
Machine Size（mm） |
1600×860×1400 |
|
Weight （kg） |
200 |
|
Power（w） |
300 |
|
Voltage |
220V / 50～60Hz |
