Automatic filling machine widely used in petrochemical, daily chemicals, pharmaceutical, food, pesticide and other industries in the packaging line. It adopts stepless speed regulation, the machine is adjustable for different size of bottle.
This machine adopts PLC control, sthe filling volume adjustment, filling speed, the entire equipment system can be completed by a single click on 5.7 inches touch screen, convenient and direct. Easy foaming material, with a lifting nozzle reduce material foaming.

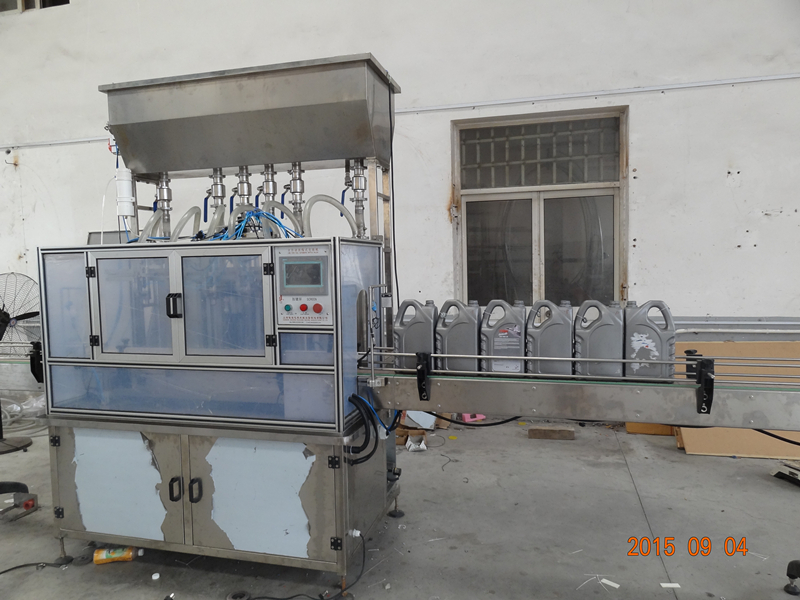

Linear filling machine this machine for quantitative automatic filling machine, can be used in filling paste, dilute paste, used in the design of mechanical linear motion mode, and using the PLC logic controller , sensor and cylinder, to achieve the purpose of automatic control equipment, machine are made of 304 stainless steel material, Aluminum Alloy frame completely conforms to the GMP standard. The equipment is easy to operate and can be filled with different containers in a short time to achieve the cost-effectiveness of one machine
1,adopt PLC programmable control
2, with 5.7 inches color touch screen man-machine interface system
3, the filling volume adjustment, filling speed, the entire equipment system can be completed by a single click on touch screen, convenient and direct
4, easy foaming material, equip with lifting nozzle to reduce material foaming
5. The filling structure is simple, the adjustment is convenient, the size bottle is universal, the bottle shape is changed, no need change any parts of machine.
6, can equip with complete package line.
The metering cylinder of the filling machine is respectively connected with the filling head, and through the reciprocating movement of the main cylinder, a quantitative liquid, a half fluid and a paste are sucked in, and then injected into the container to be loaded. In this process, it is necessary to switch a through valve to change the flow direction of the liquid when the main material cylinder changes in time. Moreover, in the injection process, in order to speed up the filling speed without causing the liquid to overflow, when filling to the full bottle of 90%, it is necessary to open a connected throttle valve in the injection path, so that the flow of injection is significantly reduced. Then finished filled bottle move out, new empty bottle move in, in this process, accurately and timely control the stop plate installed on conveyor for bottle entrance and exit, ensure each time in and out of the container, and at the same time to ensure that the container regardless of shape, the filling head can be exactly fitting with container mouth, otherwise the output alarm signal, and before the fault is not excluded, not to continue filling. Easy foaming material, equip with a lifting nozzle to reduce material foaming. Finally, the filling head can be moved down accurately after the container is in place to fill the bottle mouth. After filling, the filling head should be moved rapidly so that the container can be output smoothly.
|
Item |
Parameter |
|
Filling Volume Range |
50ML-5000ML（Customized Available) |
|
Filling Speed |
20-30 bottle /min |
|
Filling Accuracy |
±1% |
|
Voltage |
220V/50HZ—60HZ |
|
Power |
500W |
|
Air Pressure |
5～6kg/ cm 2 |
